Features:

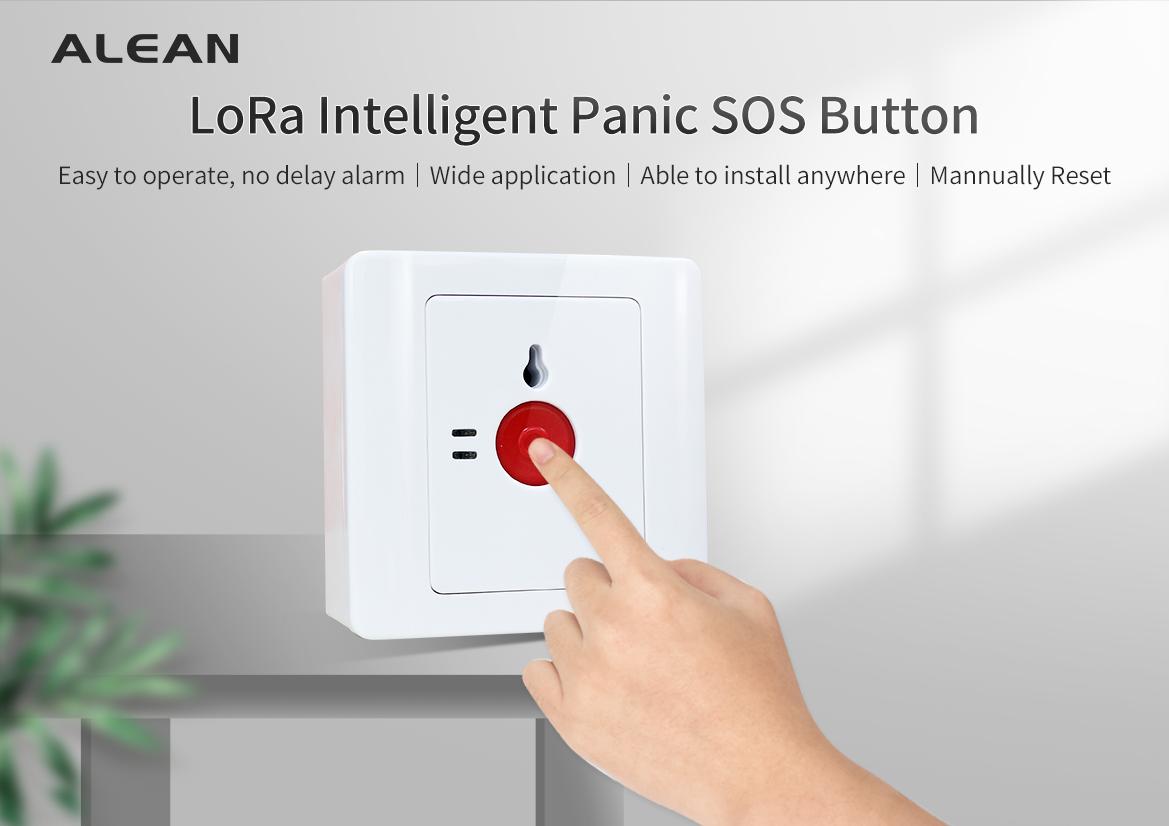

1. LoRa Intelligent Panic SOS Button, need to be used with LoRa alarm controller.
2. Wide wireless coverage, typical application environment coverage radius up to 1km.
3. With self-checking function and the panel supporting low-voltage alarm, disconnection alarm,tamper alarm function.
4. Using LoRa wireless communication, long distance and wide coverage.
5. No wiring, easy deployment, simple maintenance, and low cost.
6. With LoRa Wireless Technologies, longer for transmission distance.
7. LoRa wireless communication has strong anti-interference ability.
8. Wireless two-way communication, can automatically report the device status (battery power, tamper, alarm status).
9. Low power consumption, the detector battery can work continuously for more than 1 year.
10. Adopting advanced intelligent power saving mode design, combined with the trigger frequency, can reduce the number of transmitted signals and improve the service life of the battery.
11. Judge the working state of the detector in time by the indication of the status light(self-study, sleep, trigger, alarm state).
12.The contact triggering method ensures the alarm status of the emergency button, which needs to be manually reset to eliminate the alarm.
|
Power supply |
DC3V 1100mA （2pcs 3A batteries） |
|
Static Current |
≤10uA |
|
Alarm Current |
≤20mA |
|
Battery Life |
1 year（According to different places and alarm times） |
|
Alarm indication |
RED LED panel indicator flashes once to give an alarm |
|
Low voltage reminder |
If the battery voltage is lower than 2.5V, an low voltage warning will be reported |
|
Working temperature |
-10℃～50℃ |
|
Relative humidity |
≦85%rH |
|
communication method |
LoRa wireless（433～435MHz） |
|
Communication distance |
≤1KM（In open air） |
|
Dimension |
86*86*45mm |
|
|
|
