Features:

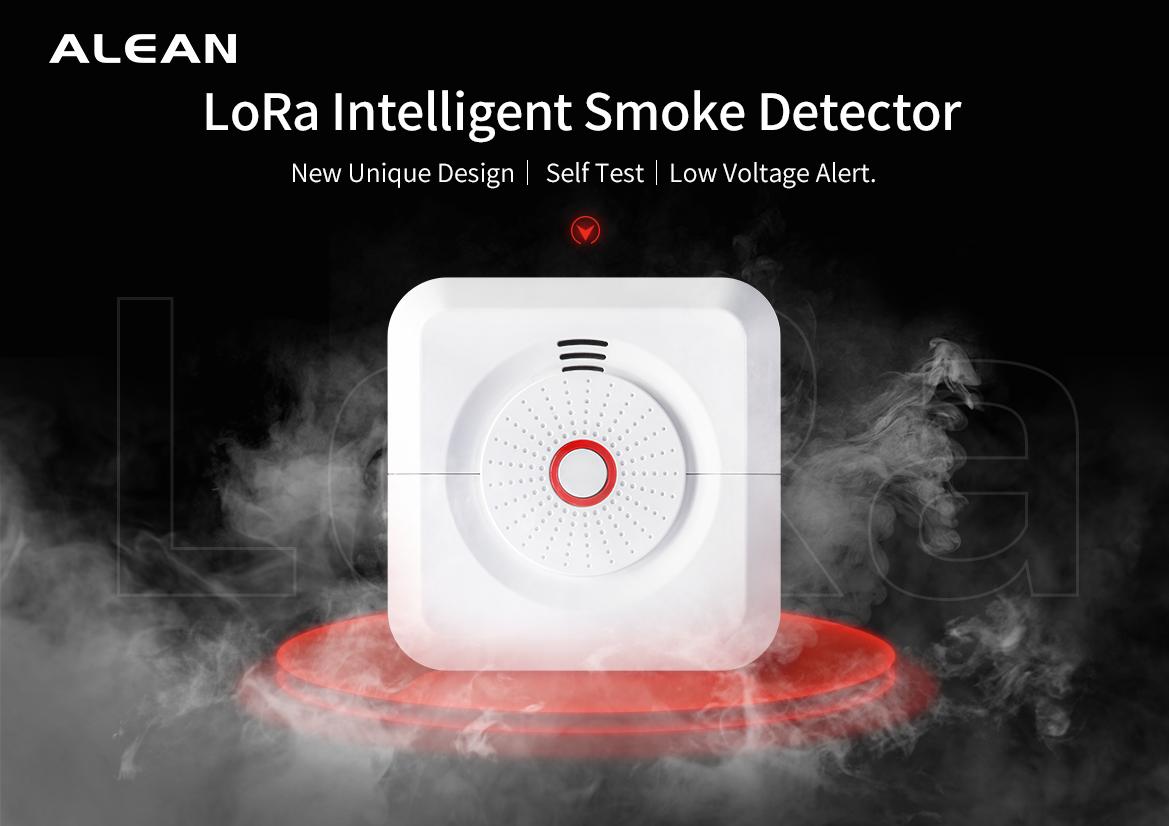

1. LoRa Intelligent Smoke Detector, need to be used with LoRa alarm controller.
2. The Smoke Detector has passed the “3C” fire protection certification.
3. Using Lora wireless communication, long distance, wide coverage.
4. No wiring, easy deployment, simple maintenance, and low cost.
5. Using photoelectric smoke detection technology, has stable performance and reliable work.
6. Wide wireless coverage, typical application environment coverage radius up to 1km.
7. Low power consumption, the detector battery can work continuously for more than 1 year.
8. Wireless two-way communication, can automatically report the device status (battery power, tamper-proof, alarm status).
9. With LoRa Wireless Technologies, longer for transmission distance, and LoRa wireless communication has strong anti-interference ability.
10. With self-checking function, supporting the panel to realize low voltage alarm, disconnection alarm, tamper alarm function.
11. Adopting advanced intelligent power saving mode design, combined with the use environment, can reduce the frequency of the transmitted signal and improve the battery life.
12. Through the LED indicator and buzzer alarm prompt, judge whether there is smoke in the scene in time, and find out early to realize warning .
|
Power Supply |
DC3V CR14505 3V （Lithium sub-battery） |
|
Static Current |
≤50uA |
|
Alarm Current |
≤100mA |
|
Battery Life |
1 year（According to different places and alarm times） |
|
Monitoring area |
20㎡ |
|
Alarm indication |
Red LED indicator, buzzer alarm prompt |
|
Alarm sound pressure |
85dB/m |
|
Smoke sensitivity |
Level 2 |
|
Executive Standard |
GB20517-2006 |
|
Working temperature |
-10℃～50℃ |
|
Relative humidity |
≦95%rH（No condensation） |
|
Communication method |
LoRa Wireless（433～435MHz） |
|
Communication distance |
≤1KM（In open air） |
|
Dimension |
100*100*45mm |
|
|
|
