Items:
1. Full network alarm control panel: Q800-100/300
.png)

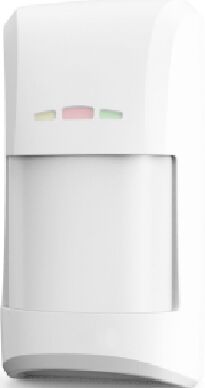

2. Lora PIR motion sensor: EAP-150XT
.jpg)
3. Lora magnetic door contact: EP-15
.png)
4. Siren: AL-630
.jpg)
How to operate the control panel and Lora detectors?
1. Power on the alarm control panel, and plug in the LORA antenna.
2. Match Lora magnetic door contact with alarm control panel.
2.1 Enter into “Setting”, choose “Lora self-study”, enter into “Configuring Lora device”
2.2 Long press the button of Lora door contact, until the Lora device details is displayed on the screen.
You can see the Factory code, device code, device name, etc, then release the button.
This device name can be changed as you wished, after change the new name, choose “configure device”, then finished. We suggest keep the device name same as the zone name.
2.3 Press “Return”, choose “Device”, then you can see the device which you added.
3. Match Lora PIR sensor with alarm control panel.
3.1 Return to “Setting”, choose “Lora self-study” to add a new detectors.
(Attention: Choose “Clear cache” to clear the records at first, in case to effect the next code matching)
3.2 Open the Lora PIR sensor, take off the MJP4 cap and make it short circuit, then put 2 AAA batteries in the right position, attention to the “+” and “-” direction.
When you see the red and green LED lights flashing alternately, that means the code is on matching with the control panel.
3.3 When you see the PIR sensor information is displayed on the screen, then also can choose “Configure device” to modify the name or other details as you want.
3.4 Take off the batteries, and make the MJP4 cap disconnect.
We also suggest you make the MJP2 cap disconnect, in such condition, it triggers every 2 minutes.
After disconnecting, then this PIR sensor will be working normally.
4. Restart and test
4.1 After finish the above steps, press “Restart” to restart the alarm control panel.
4.2 When choose “Arm”, the icon becomes green, in such condition, when trigger the door contact or PIR sensor, the icon will become red, and voice reminding “Warning alarm”.
When touch the icon, you can see more details, such as the RSSI data, SNR data, etc.
Attention: For Lora products, the signal is quite important. When the SNR reaches 30, that means the signal is very good.
4.3 In the day time, if you don’t want the alarm notice, you can choose “disarm”.
4.4 The “Warning alarm” time can be set up. Choose “Setting”, find the “Alarm define”, and choose “Zone alarm”, and change the “Play times” as you want, and press “Modify”.
4.5 The “Warning alarm” volume also can be set up.
Choose “System”, find “More”, “System Action”, “System invoice”, and fill in the invoice number as you want, then press “Save”.
5. Check the alarm record.
Choose “Other”, “Search record” “Search”, you can find the alarm record in a period.
