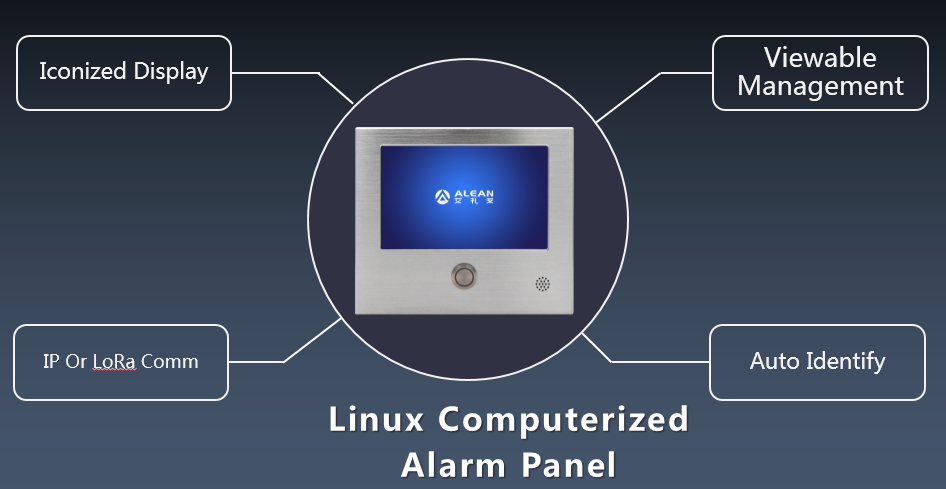

| Touch Screen Hybrid POE LORA Linux Alarm Panel-Q800 |
| 2021.01.13 |
|
Alean R&D Team innovated the Hybrid Alarm Control Panels with LoRa, POE function.
So its full Networking alarm control panel, no need wire any more, more flexible and widely used.
.png)
Features:
Housing material : Aluminum alloy brushed Housing
Screen size : 10.1inch
Resolution : 1024*600 IPS Touch Screen
System : Linux system, more stable, and long standby time.
Network : TCP/IP , LoRa network
System RAM : 1GB
Internal Sorage : 4GB
CPU : ARM CORTEX A7 1.2Ghz
DC : 5V USB
Battery : bulit in 6000mAh battery, standby 3-5hours.
Support wallpaper : 10pictures carousel
USB Port : *1
Linkage : able to linkage 1600 relay , one zone linkage one relay
Backup : support insert U Disk backup data
Alarm events : able save 0.5Million records.
.png)
Alarm POE Alarm Detector: able to rewrite the detector name, and for IR Barrier able to set block 1 or multi beam alarm, able to display the signal strength, the voltage status,

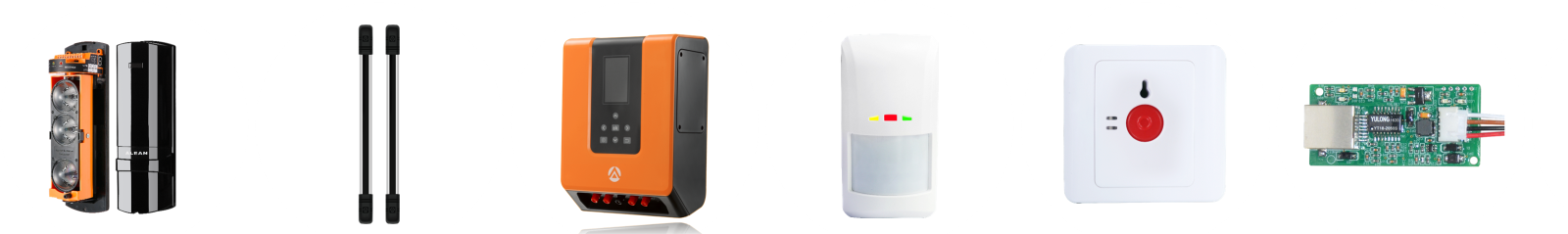

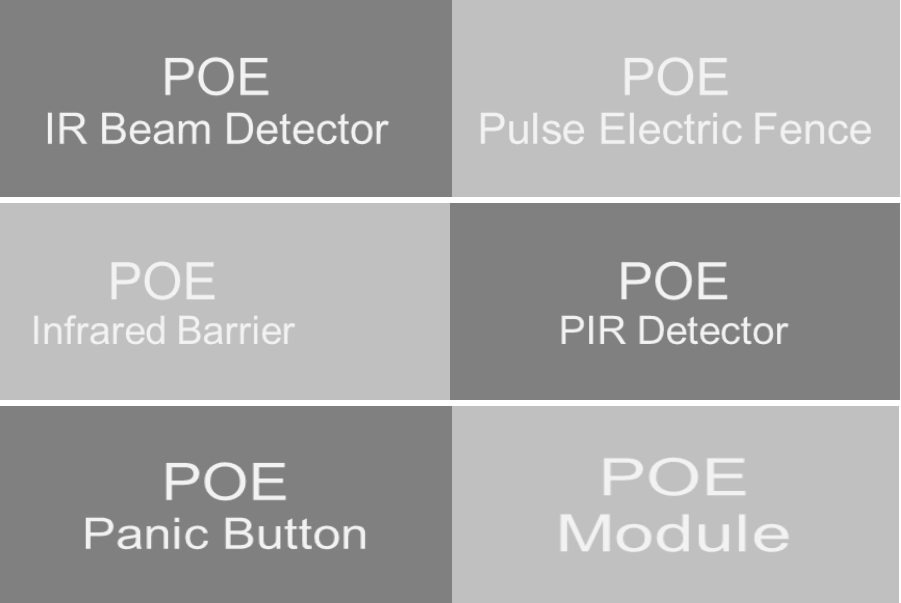

Support POE Detectors as below:
.png)
.png)

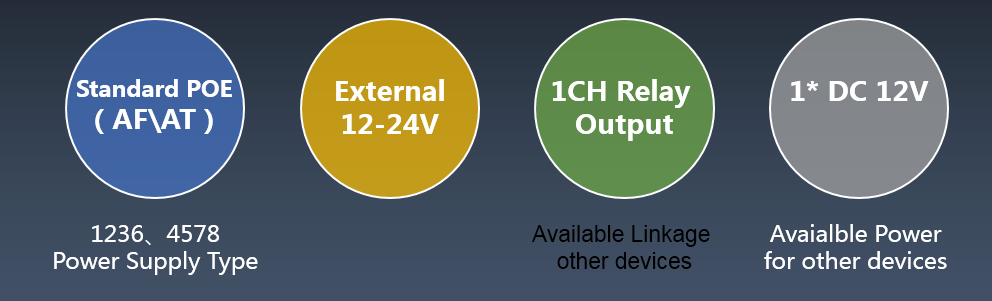

POE DETECTOR Parameters:
.png)

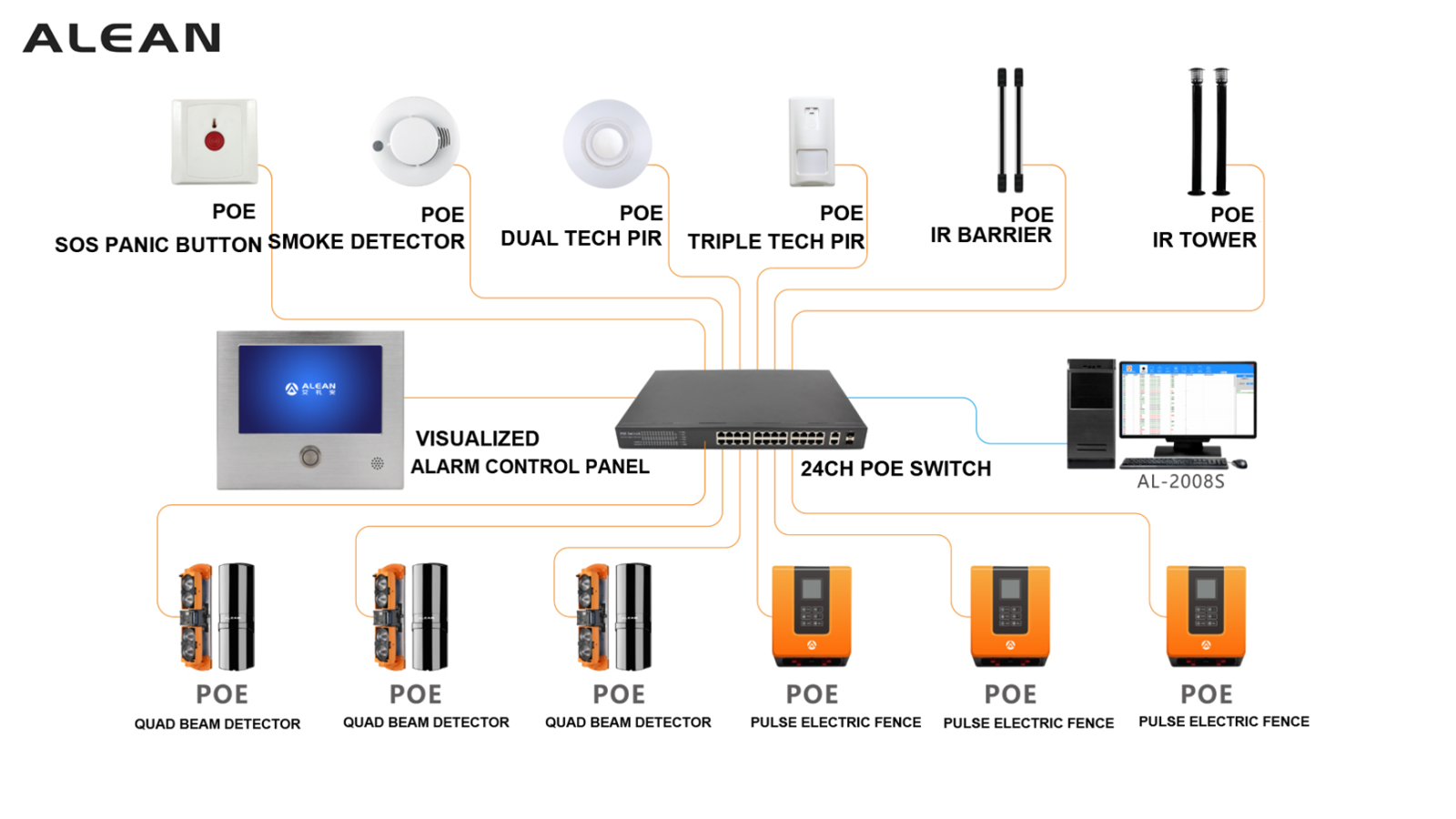

POE Diagram:
.png)
Alean LoRa Alarm Detectors
Lora Detectors Parameters:
•Enable Self Built LoRa Base, ce, wide covered for signals.
•Work Voltage: 2.5~3.6V ：DC2.5~3.6V Standard 7# battery
•Static Current: ≤1UA 、Alarm Current：≤100mA
•Battery Life Time: 1Year Apprx（Depend on trigger alarm times）
•Support LoRa Communication, wireless frequency: 433~435MHz
•Distance: 2000Meters Approx（in the open air）
•Retore: Auto Restore
•The use environment is unrestricted and widely used. It can be used for the alarm operation assistance system of networked alarm operation and communication operation.
LoRa Diagram:
|
|
| |
|
|
